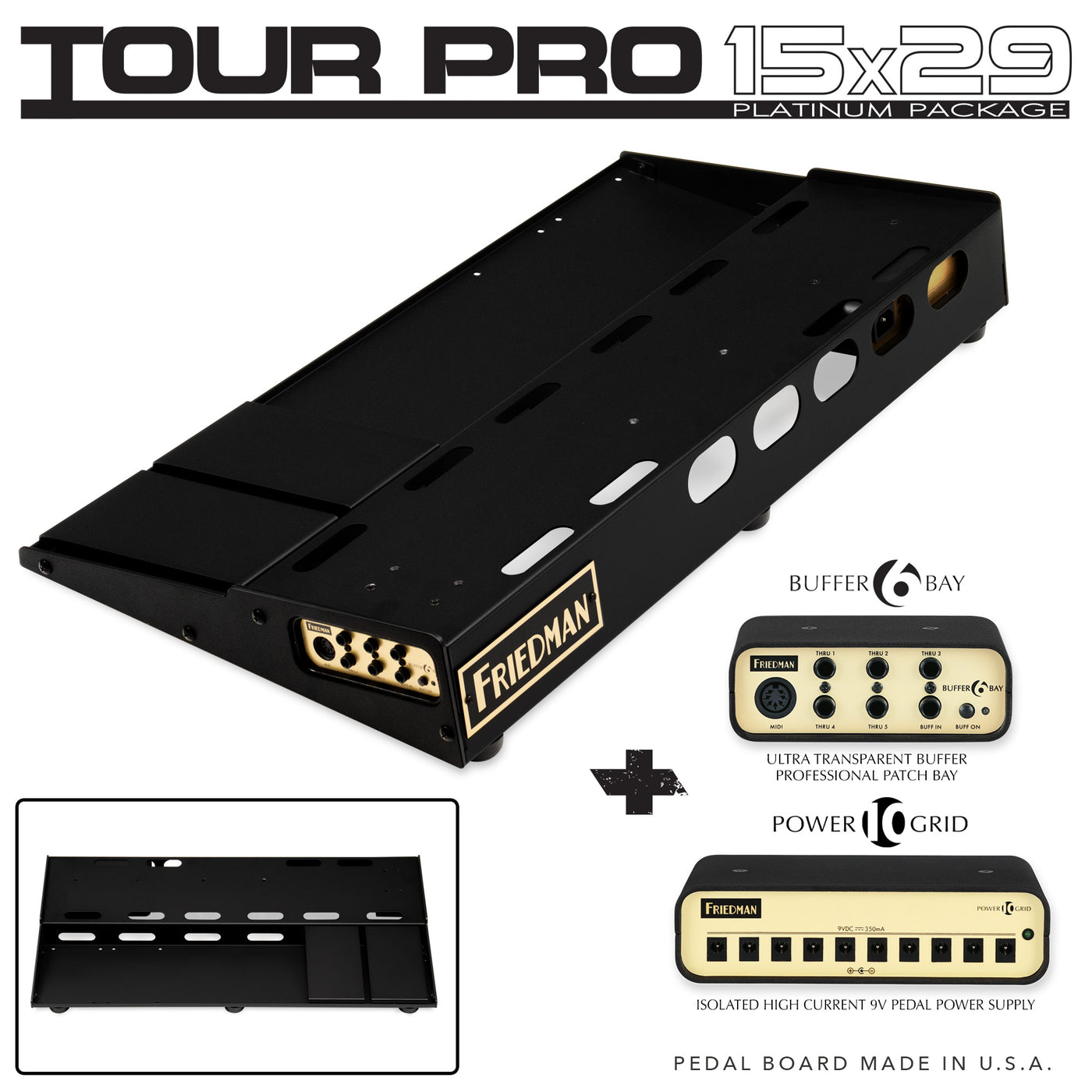

Friedman Tour Pro 1529 Platinum 15" x 29" Pedal Board w/ 2 Risers, Buffer, Power Supply and Cables

Dave Friedman has been building pedal boards for over 30 years. From the fancy, ultra-complex, to the simplistic pedal boards, Dave has seen and designed them all for the who's who of the industry. When it came time for Dave to design his own line of pedal boards, everything a touring or home guitar player actually needs was meticulously thought out and addressed.

Friedman pedal boards are MADE IN USA. Why? Because it matters to them and the quality and manufacturing consistency of the TOUR PRO boards is what makes a Friedman a "FRIEDMAN!"

While most pedal boards have either a flat or a slanted surface, the TOUR PRO boards are designed with two tiers, a bottom section that is flat and a top section that is angled (with all the holes needed for easy cable routing). This two-tier design allows a guitar player to have access to all pedals on the board, without ballerina style, toe-extending dance moves. And, to address the need for Wah and/or Volume pedals, the TOUR PRO 1529 includes TWO detachable risers, which can be mounted in various locations on the bottom tier (yes - they thought of left footed guitar players too).

So you can buy a cheap pedal board only to replace it later, or buy a Friedman now and enjoy it forever!

The TOUR PRO 1529 PLATINUM package includes a Friedman POWER GRID 10 (Isolated high current 9V Pedal Power Supply)& Friedman BUFFER BAY 6 (Buffer and Patch Bay)


POWER GRID 10 (ISOLATED HIGH CURRENT 9V PEDAL POWER SUPPLY)

The POWER GRID 10 was designed to address all of the deficiencies Dave encountered with power supplies from other brands over his 27-year history of designing and building pedal boards for the biggest touring guitarists and studio producers. The Power Grid 10 was designed to meet the demands of any player who wants a dead quite pedal board, that can be taken anywhere and is tour ready. Some of the key features include:

1) The Power Grid 10 provides 10 isolated outputs - 350mA per output at 9Vdc.
2) Universal powerfrom 100-240Vac meaning you can plug it in anywhere in the world. You will never have to flip switches or worry about a step up or step-down transformer.
3) ZERO field hum, which plagues many other power supplies with traditional toroidal transformers.
4) The Power Grid 10 will power virtually any pedal (350mA each per 9V output)
5) All the cables needed to power your pedals.
6) And for those boards that have no room to mount the power supply underneath, the Power Grid 10 was designed as a riser - yes, with the Power Grid 10 you can mount your pedals right on top of the housing, including your favorite Fuzz pedals, which are known to cause unnecessary proximity hum and infiltrate your other pedals.


CABLES INCLUDED:

• 2 x 2.1mm BLACK connector to 2.5mm BLUE connector - polarity reversed - 20" long - right angle connector on both sides,10 x 2.1mm BLACK connector to 2.1mm BLACK connector - regular polarity - 20" long - right angle connector on both sides
• 1 x 2.1mm BLACK connector to 1/8" phono BLACK connector - 20" long - right angle connector on 2.1mm connector.
• 1 x 18 V cable - 2.1mm BLACK connector with additional 2.1mm slave connector on one side to 2.1mm BLACK connector - regular polarity - 20" long - right angle connector on both sides.


BUFFER BAY 6 (BUFFER AND PATCH PAY)

The Friedman Buffer Bay is a simple solution that incorporates Dave's wealth of experience and knowledge providing players an innovative tool which can be easily implemented to ANY pedal board or easily mount into any Friedman branded pedal board.


SPECIFICATIONS:

• Ultra-transparent, natural and musical sounding buffer
• 5 identical 1/4" TRS (tip, ring, sleeve) in and out connections
• Buffered TS (tip, sleeve) connection (can be turned ON/OFF via switch)
• 7 pin MIDI thru connection
• Cleans up all of the connections on your pedal board.
• Allows for tighter pedal placement on the board (you no longer need to access
the jacks on certain pedals).
• Lets you have all cables from your board in the same location allowing neater chord
runs on stage.
• Your pedal chain in permanently connected making setup and takedown quick
and painless.
• Saves the life of the jacks on your pedals by not plugging in cables ever y time you play.
• Easily configure your input or output in hard-to-reach places.


Features:

• Dimensions: 15” x 29” x 4.5”
• Weight: 8 lbs.


A CASE THAT FITS

If you are looking for a case or bag, the 3i-3016-10BC or Mono M80 2.0is a great match for the TOUR PRO 1529
